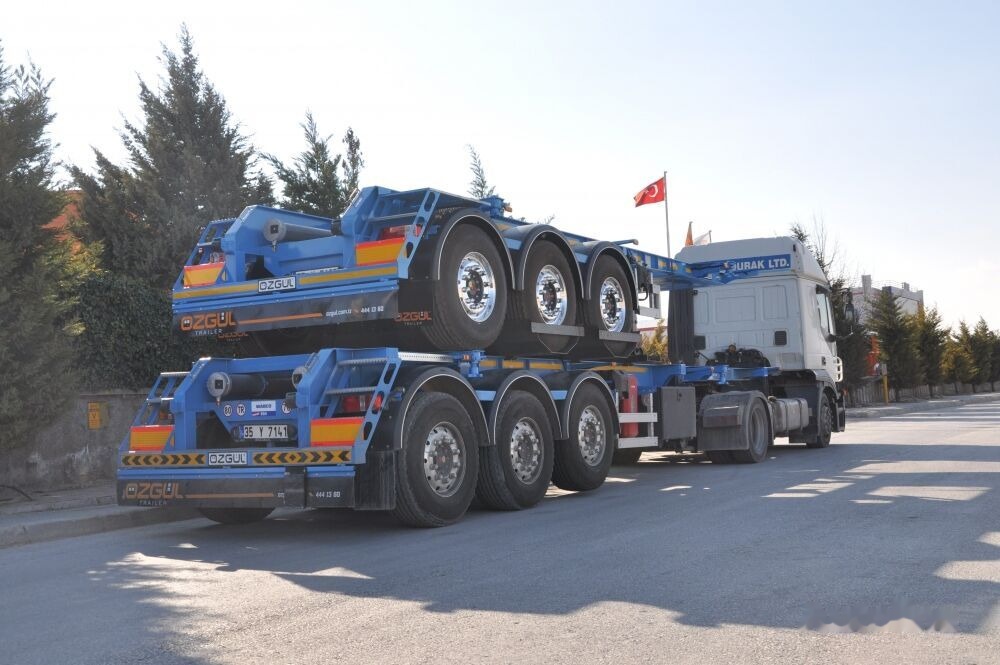

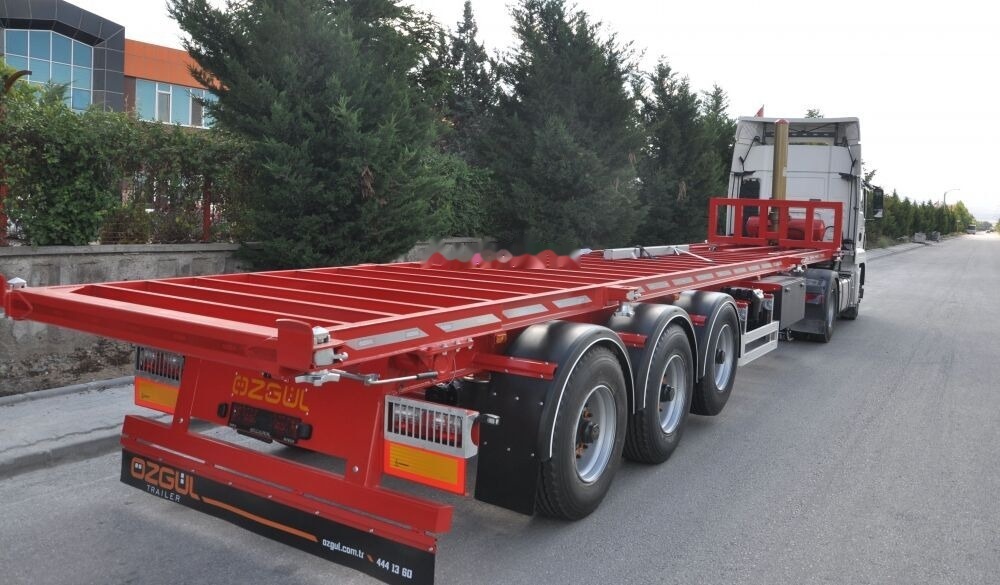

Containertransporter/ Wissellaadbak oplegger OZGUL ISO TANK CONTAINER CARRIER SEMI

Container locks: There are 4 Nos container Lock

Undercarriage: High strength steel undercarriage steel sheet is used

Welding type: Welded with shielded metal arc electrode welding technology

King Pin: 2” King pin is used in DIN standards

Platform: Will be manufactured with fishbone type

Rear part of undercarriage: Laddered type

Axles: axles with drum or disk with 3x9 ton capa¬city are used

Axle lifting: There is axle lifting system in front axle

Trailer foot: 50 ton carriage capacity two speed telescopic foot

colour: Determined according to customer request

It is available for carrying 1 x 20 Feet Tank Container

2s/2m EBS E-2 + RSS (curve balance system) brake system

2x7 pinned

with complete SAE standard

complete lighting system;(SABA)

22,5 size 6+1 no rim is used

It is painted in special paint cabinet with oven 2+1 layer epoxy lining and acrylic paint after Sandblasting+phosphate coating

50 ton carriage capacity two speed telescopic foot

6 nos plastic mudguard

Plastic water tank

Wheel stop wedge block

strip reflectors surrounding the vehicle

Spare wheel carriage location

rear stop wedge blocks

Aluminum bicycle guardrail
