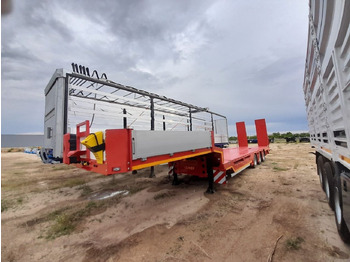

Turkey, Selçuklu / KONYA3 AXLES LOWBED SEMI-TRAILER TECHNICAL SPECIFICATIONS
Fifth Wheel: Height, 1250 mm
Loading Platform Height: 930 mm (Loaded), 943 mm (Unloaded)
Overall Length: 13881 mm
Over All Width: 2540 mm
Loading Platform Length: 8.452 mm with tire pool of, 3022
Gooseneck Length: 3800 mm
Rear Overhang: 2682 mm
Axle Group Capacity: 33000 kg
King Pin Capacity: 18000 kg
Total GCW (Capacity): 51000 kg
Tire Estimate Weight: 9500 kg
Payload: 41500 kg
Chassis Construction:
REİS chassis suitable for 98/91 EEC standards made from high graded steel with “I” profile shape, produced with atomized submerged arc welding system.
Brake System:
Brake system suitable for 71/320 EC and 2002/78 EC standards. Automatic load sense valve RSS (corner stabilizer).
Axle: BPW Brand 3 x 12-ton capacity, air suspension
Tires & Rims: 12 PCS tire with size275 70R 17,5
Landing Gears: SAF Brand, 24 ton carrying capacity, double speed mechanical landing gear.
Rear Loading Ramp:
Sliding Hydraulic Ramp, ramp overall dimension: 3130 mm, (Optional) with 750 mm flip able edge
Base Plate:
Steel removable type of fittings that is adjusted for high profile made from galvanized steel design to fulfill the pool built to the chassis.
Water Tank: 40-liter stainless steel water tank.
Tool Box: 2 PCS with dimensions 1500*500*400 mm
Lashing Hooks and Lashing Points: 2*11 load lashing hook suitable for safe cargo transport.
Widening Brackets: N/A in case of requirement can be added in the project
Gooseneck Side Cover: N/A optional can be made according to demand
Distance Between Axles: 1320 mm
Electrical System:
Electrical system suitable for 76/756/EEC, 2007/35 EC and ADR standards. 2 x 7
pole plugs, 1 x 15 pole plug suitable for all type truck tractors LED system. Front and
side warning lights.
Side Protective Bars: Impact-resistant side bicycle protective bar suitable for 70/156 EEC standards
