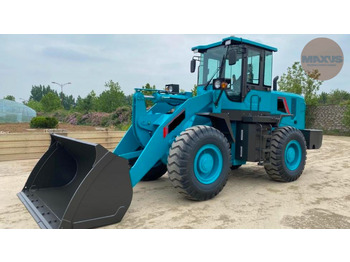

Leasing maxus Wheel loader 10t
Gepubliceerd: 3mnd. 11d.
Gepubliceerd: 3mnd. 11d.
Poland, Gdańsk ul. kontenerowa 21 Magazyn PrzeładunkowyWeichai emission engine, optimized torque, converter matching, significantly increases traction while reducing fuel consumption by up to 5%.
18 Mpa working pressure in the hydraulic system for efficient energy savings.
Higher weight and load capacity.
Operating temperature -20+43°C.
Installation of additional dampers improves cabin sealing, reducing vibrations and noise.
Technical Specifications
Performance
Rated load capacity: 3000 kg
Total weight: 10,000 kg
Bucket capacity: 1.8–2.5 m³
Maximum traction force: 98 kN
Maximum disconnection force: 120 kN
Maximum tilt capacity: 30°
Maximum dump height: 3100 mm
Maximum dump reach: 1130 mm
Overall dimensions (L×W×H): 7120 * 2375 * 3230 mm
Minimum turning radius: 5464 mm
Engine
Engine model: Deutz WP6G125E22
Type: Vertical, in-line, water-cooled, 4-stroke diesel engine
Cylinder diameter*stroke: 6-108 * 125
Rated power: 92 kW
Maximum torque: 500 N·m
Minimum fuel consumption rate: ≦210 g/kW·h
Transmission System
Torque converter system: YJ315-X
Gearbox type:
4 forward gears, 2 reverse gears
Maximum speed: 38 km/h
Axles:
Main spiral reduction
Bevel gear, 1-step reduction
Planetary reduction ratio: 1
Wheelbase: 2740 mm
Maximum ground clearance: 400 mm
Hydraulic System
Working pressure: 18 MPa
Total cycle time: 25 seconds, 9.3 ± 0.5 s
Braking System
Main brake: Pneumatically assisted disc brake on all 4 wheels
Parking brake: Manual disc brake
Tire Specifications
Tire type: 17.5-25
Front tire pressure: 0.4 MPa
Rear tire pressure: 0.35 MPa
