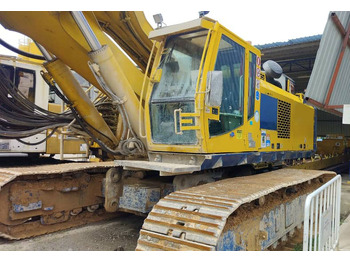

Leasing ABI TM 22
Gepubliceerd: 26d.
Gepubliceerd: 26d.
United Kingdom, Omnia Machinery, 1 Bentley Avenue, Cowpen Lane Industrial Estate,
Billingham, TS23 4BU10,796 Hours
Engine- Cat® C18 Acert / Hose power: 470 kW (630 HP) /1800min -1
Telescopic leader mast design: – Strock 18m, Maximum pull force -270kN Maximum load at minimum reach 15ton
Maximum pull / crowd force: For telescopic leader mast after increase stroke to 22m, Force on sledge 330/ 220 kN – 22ton.
Total Mast length: Reach Length – 22m (72,‘16″)
Height/ Depth: Height from the Docking connection to ground is approx 24,485 mm. Height from bottom of Hex Joint to ground will be 21,215 mm.
Maximum pull / crowd force for telescopic leader mast after increase stroke to 22m- Force on sledge 330/ 220 kN
Other installed items: Hydraulic-rapid changing deice with docking system /D6 (Mounted into the guide sledge with vibration resistant. Telescopic leader mast.
Max torque on TM22 / MDBA 7000: 20ton / 7ton
Operating weight- 78,100kg
Quick & safe attachment change through the rapid changing device. (Docking system)
Vibration free and low noise on rotary head.
Capable of Kelly bar and auger to be raised/lowered with 90 degrees joint without assistance from secondary supporting machineries
